Quiet Zone Vent Fans
Ceiling Mount Bathroom Ventilation Fans

The Quiet Zone Bathroom Fans feature a ball bearing
Bath Fan
Permanent split Capacitor (PSC) motor with an aerodynamic blower wheel. And, an attractive sleek flush grille. Lower RPM's for Lower Sones.

Model Air Volume Noise Level Power Usage
QZ-50 50 CFM 0.6 Sones 16 watts
QZ-80 80 CFM 0.3 Sones 25 watts
QZ-110 110 CFM 0.6 Sones 35 watts
QZ-150 153 CFM 1.1 Sones 35 watts
LK-1 Light Kit includes 23 watt fluorescent bulb and night light.

Housing
  • Rugged corrosion resistant 26 gauge galvanized steel.
  • Detachable 4" duct collar with built-in draft damper.
  • Adjustable double hanger mounting brackets. Up to 24 inches for ideal positioning.


Bath Fan 2

Motor
Bath Fan Diagram
  • Plug in permanently lubricated motor engineered for continuous operation.
  • Exceeds Energy Star parameters. ball bearings are standard. Permanent Split capacitor (PSC) motor with automatic thermal overload. 110 volts 60 hz
  • ETL and cETL listed for tub / shower when used with GFCI branch circuit.



Energy Star and HVI Certified and ETL LIsted
Confirms to UL and cUL safety standards.



Certifications



    13x14 Bathroom
Quiet Zone Models QZ-50, QZ-80, QZ-110and QZ-150
Model Number
   QZ-50   QZ-80   QZ-110   QZ-150
Static Pressure in inches w.g.   0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25
Air Volume (CFM)   50   80 65 110 87 153
Noise (sones)   0.6   0.3 N/A 0.6 N/A 1.1
Fan Watts   16W   25W   35W   45W
Duct Diameter   4"   4"   4"   6"
Power Rating (V/Hz)   120/60   120/60   120/60   120/60

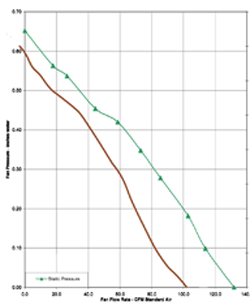

Flow Rate
